Reverse Barrel Bolt 150 x 31mm

Zanda

Terry's Online Price $59.95 - $66.02
(No reviews yet) Write a Review
SKU:
STK 5225
UPC:
6849610988785
Adding to cart… The item has been added

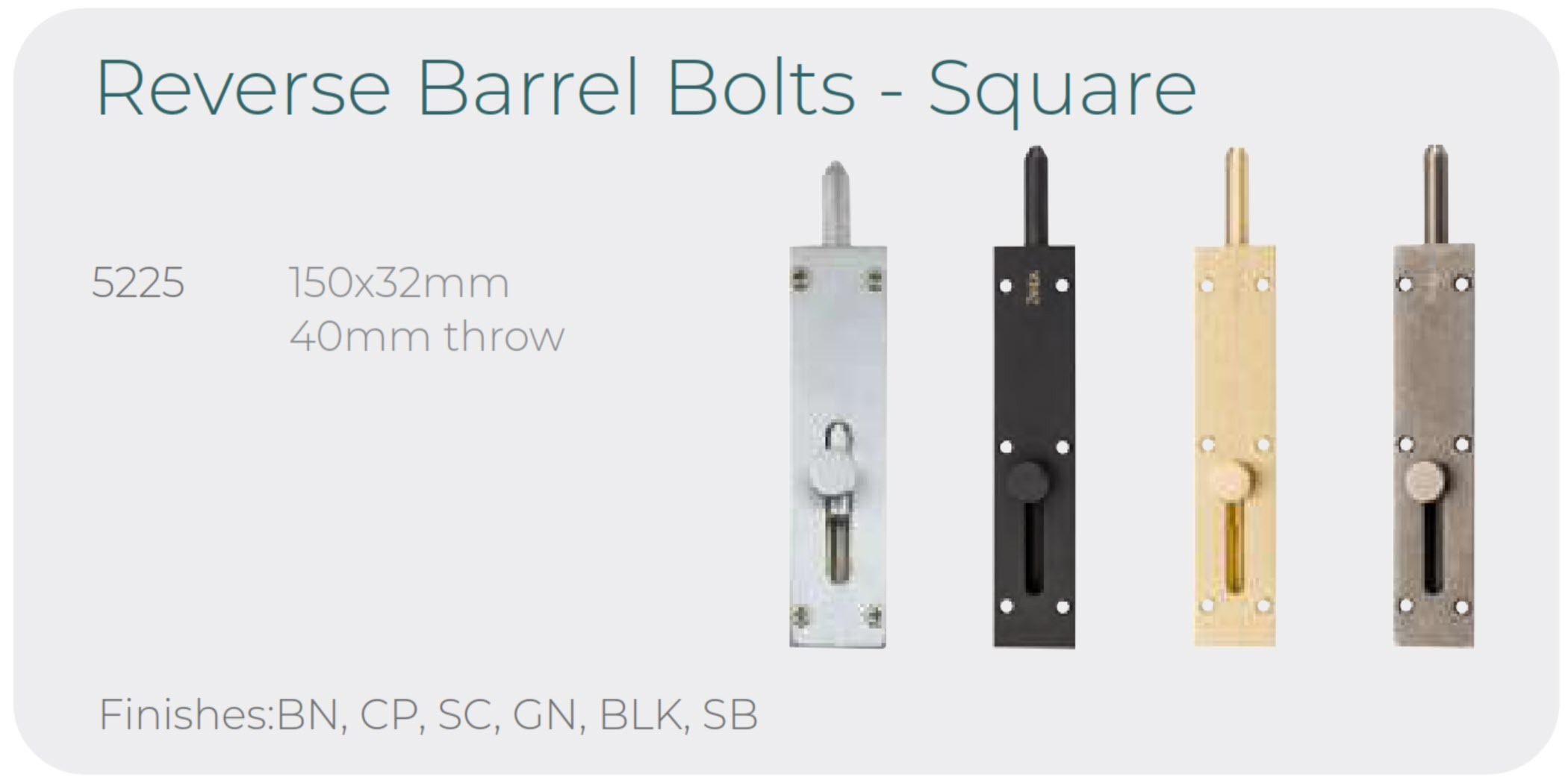

Zanda 5225 – Straight Reverse Barrel Bolt, 150 mm × 31 mm

The Zanda 5225 Straight Reverse Barrel Bolt offers secure locking with a design that allows the bolt to be thrown in the opposite direction to a standard barrel bolt. At 150 mm × 31 mm, it provides a strong hold while maintaining a clean, minimal look. Crafted from a solid brass one-piece extrusion and equipped with a heavy-sprung ball bearing retention, it ensures smooth, positive engagement. Suitable for a wide range of door types including bi-fold, sliding, hinged, and rebated doors, and backed by a 7-Year Mechanical Warranty.

Key Features

  • Reverse action – throws bolt in opposite direction to standard barrel bolts
  • 150 mm × 31 mm size for secure engagement
  • Solid brass one-piece extrusion for strength and durability
  • Heavy-sprung ball bearing retention for positive hold
  • Suitable for bi-fold, sliding, hinged, and rebated doors
  • Available in a wide range of premium finishes
  • Backed by a 7-Year Mechanical Warranty

Specifications

  • Item Code: 5225
  • Type: Straight Reverse Barrel Bolt
  • Dimensions: 150 mm length × 31 mm width
  • Material: Solid brass one-piece extrusion
  • Retention: Heavy-sprung ball bearing
  • Application: Bi-fold, sliding, hinged, and rebated doors
  • Warranty: 7-Year Mechanical Warranty

What's In The Box

  • 1 × Straight Reverse Barrel Bolt – 150 mm × 31 mm
  • 1 × Matching strike plate
  • Fixing screws (finish-matched)

Available Finish Options

  •

    Black
    5225.BLK

  •

    Brushed Nickel
    5225.BN

  •

    Chrome Plate
    5225.CP

  •

    Graphite Nickel
    5225.GN

  •

    Satin Brass
    5225.SB

  •

    Satin Chrome
    5225.SC

Item Code Family – Zanda Reverse Barrel Bolts

Item Code Description
5225 Straight Reverse Barrel Bolt – 150 mm × 31 mm
5226 Straight Reverse Barrel Bolt – 100 mm × 25 mm
5231 Reverse Barrel Bolt – Radius End, 200 mm
5233 Reverse Barrel Bolt – 450 mm
