Reverse Barrel Bolt Radius 200

Zanda

Terry's Online Price $59.95 - $74.80
(No reviews yet) Write a Review
SKU:
STK 5231
UPC:
6966524469328
Adding to cart… The item has been added

Zanda 5231 – Reverse Barrel Bolt, Radius End, 200 mm

The Zanda 5231 Reverse Barrel Bolt provides positive, reliable locking where the bolt throw operates in the opposite direction to a standard barrel bolt. The 200 mm radius-end body gives a clean, architectural look while the heavy-sprung retention delivers a reassuring snap-in feel. Built from a solid brass one-piece extrusion, it suits bi-fold, sliding, hinged, and rebated doors, and is offered in a broad range of finishes to match your hardware suite.

Key Features

  • Reverse action – throws the bolt opposite to standard barrel bolts for flexible installation
  • Radius-end design for a refined, contemporary appearance
  • Heavy-sprung ball bearing retention for a crisp, positive hold
  • Solid brass one-piece extrusion for long-term durability
  • Suitable for bi-fold, sliding, hinged, and rebated doors
  • Available in multiple architectural finishes to coordinate across a project

Specifications

  • Item Code: 5231
  • Type: Reverse Barrel Bolt – Radius End
  • Length: 200 mm
  • Material: Solid brass, one-piece extrusion
  • Retention: Heavy-sprung ball bearing
  • Application: Bi-fold, sliding, hinged, and rebated doors
  • Warranty: 7-Year Mechanical Warranty

What's In The Box

  • 1 × Reverse Barrel Bolt – Radius End, 200 mm
  • 1 × Matching strike plate
  • Fixing screws (finish-matched)

Available Finish Options

  •

    Black
    5231.BLK

  •

    Brushed Nickel
    5231.BN

  •

    Graphite Nickel
    5231.GN

  •

    Satin Brass
    5231.SB

  •

    Satin Chrome
    5231.SC

Item Code Family – Zanda Reverse Barrel Bolts

Item Code Description

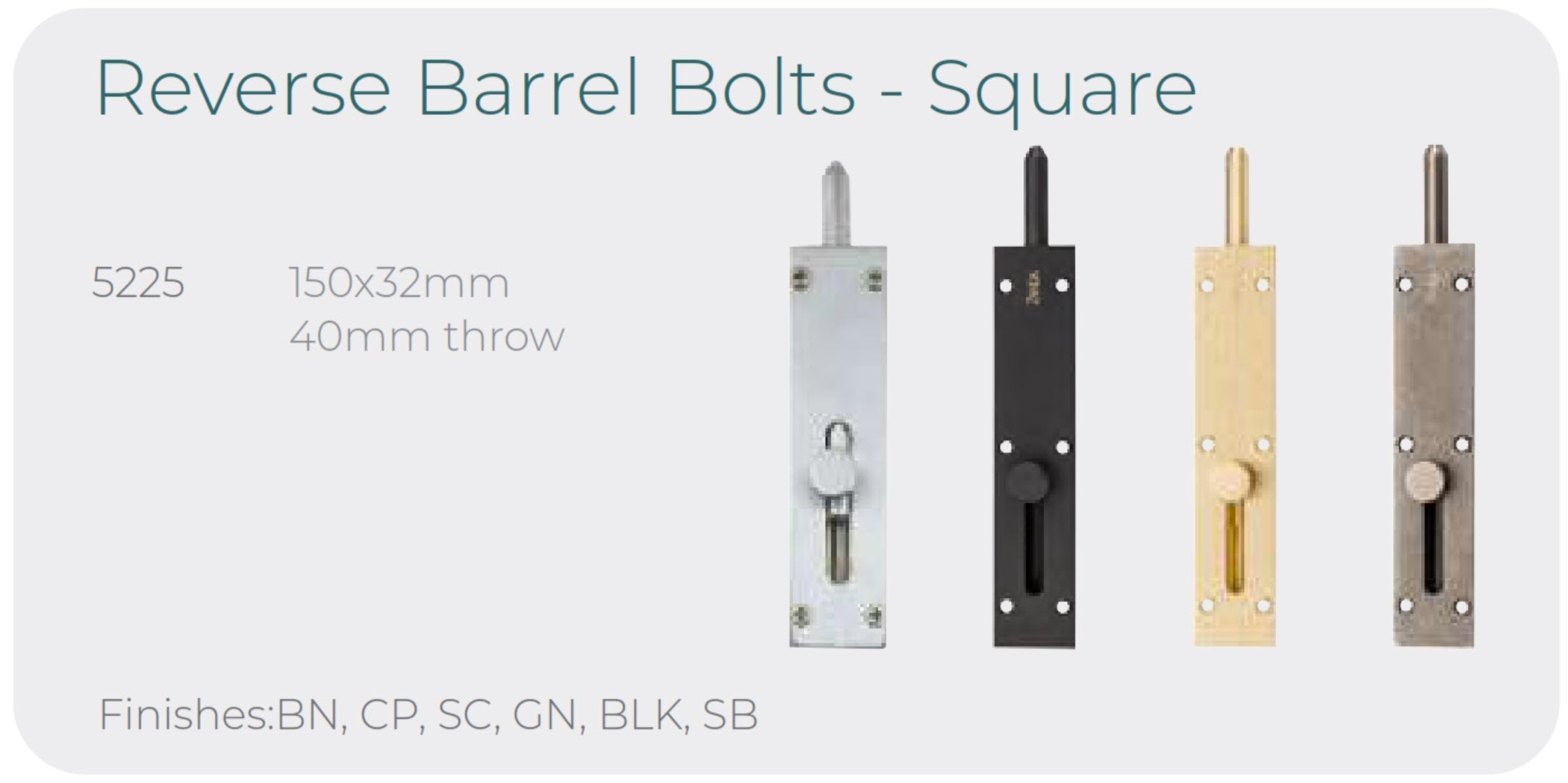

5225 Straight Reverse Barrel Bolt – 150 mm × 31 mm
5226 Straight Reverse Barrel Bolt – 100 mm × 25 mm

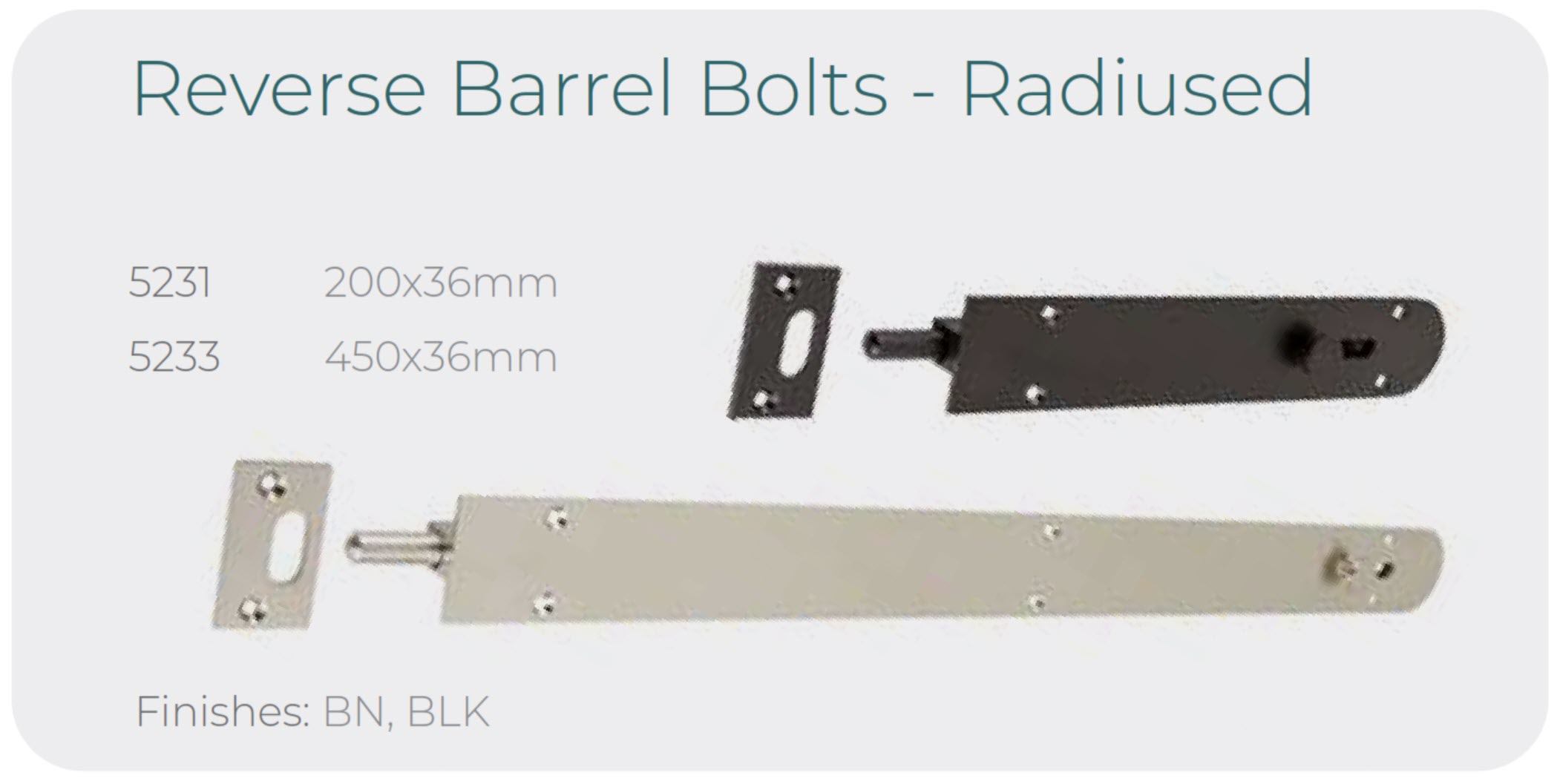

5231 Reverse Barrel Bolt – Radius End, 200 mm
5233 Reverse Barrel Bolt – 450 mm

Download PDF Resources

Zanda Door Furniture Product Brochure
Zanda Architectural Catalogue
Zanda Commercial Hardware Catalogue
Zanda Warranty
