SS Butt Hinge Loose Pin 85x60x2mm (Ctns of 120)

SS Butt Hinge Loose Pin 85x60x2mm (Ctns of 120)

Zanda

Terry's Online Price $9.86
(No reviews yet) Write a Review
SKU:
STK 5906.SS
UPC:
9343226000500
Adding to cart… The item has been added

Zanda 5906.SS – Stainless Steel Butt Hinge, Loose Pin, 85 mm × 60 mm × 2 mm

The Zanda 5906 Loose Pin Stainless Steel Butt Hinge is a compact and versatile hinge designed for smaller or lightweight doors. Made from 304 Grade Stainless Steel with a 2 mm leaf thickness, it offers excellent corrosion resistance and reliable performance in both residential and light commercial applications. The loose pin design allows for easy door removal during installation or maintenance.

Key Features

  • Loose Pin design for quick and convenient door removal
  • Compact 85 mm size ideal for smaller or lighter doors
  • Corrosion-resistant 304 Grade Stainless Steel construction
  • Durable 2 mm leaf thickness for reliable performance

Specifications

  • Item Code: 5906.SS
  • Type: Butt Hinge — Loose Pin
  • Dimensions: 85 mm (height) × 60 mm (width) × 2 mm (leaf thickness)
  • Material: 304 Grade Stainless Steel
  • Applications: Suitable for smaller internal and light external doors
  • Fire Rating: Not specified
  • Packing: Cartons of 120 units

What's In The Box

  • Stainless Steel Butt Hinge — Loose Pin, 85 mm × 60 mm × 2 mm
  • Screw pack to suit timber and metal frames
  • Installation instructions

Available Finish Options

Stainless Steel finish only

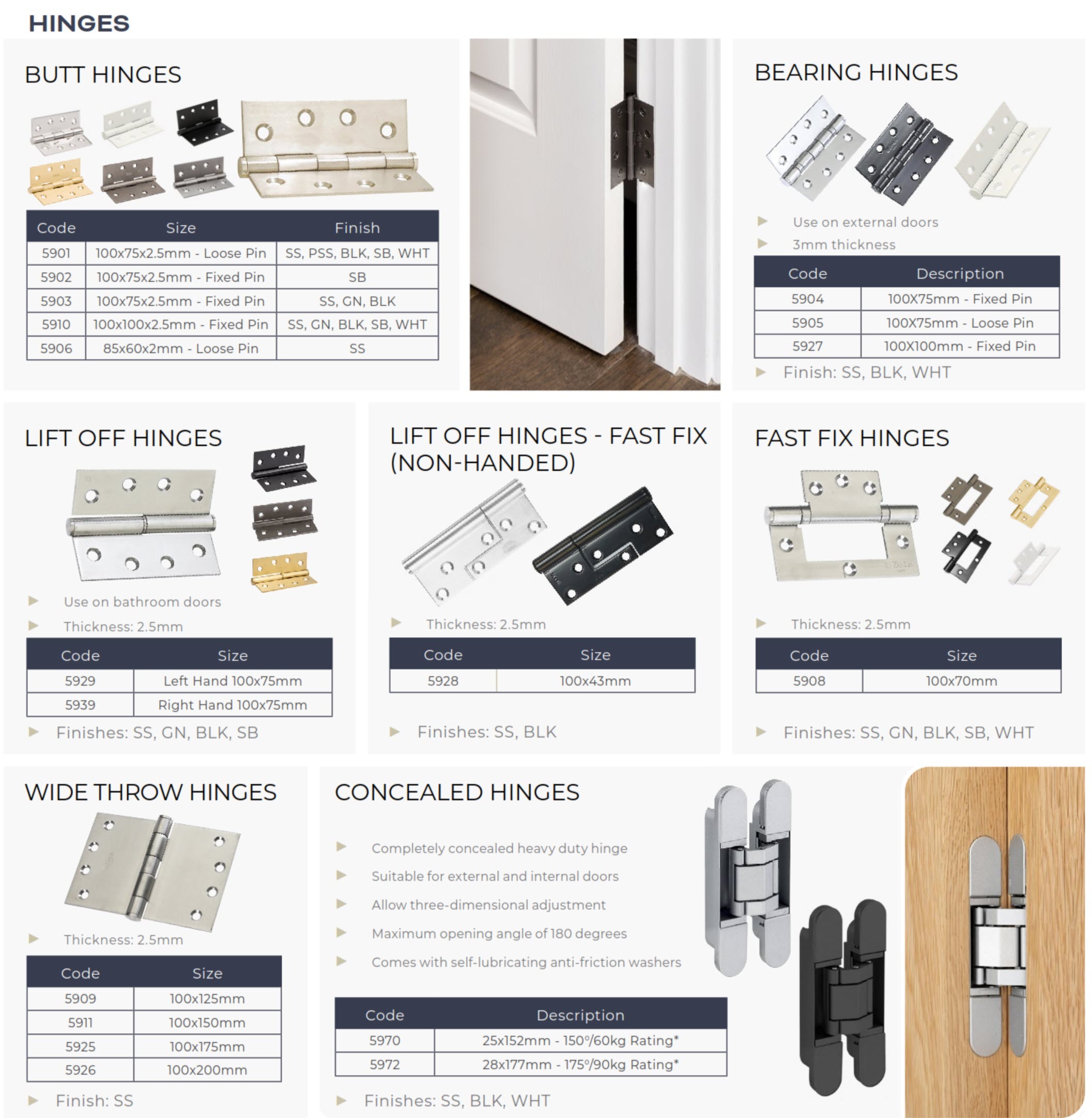

Item Code Family – Zanda Hinges

Item Code Description
5901 Butt Hinge — Loose Pin, 100 mm × 75 mm × 2.5 mm
5902 Butt Hinge — Fixed Pin, 100 mm × 75 mm × 2.5 mm
5903 Butt Hinge — Fixed Pin, 100 mm × 75 mm × 2.5 mm (Stainless Steel or Graphite Nickel finish)
5904 Bearing Hinge — Fixed Pin, 100 mm × 75 mm × 2.5 mm
5905 Bearing Hinge — Loose Pin, 100 mm × 75 mm × 3 mm
5906 Butt Hinge — Loose Pin, 85 mm × 60 mm × 2 mm
5906.1 Stainless Steel Butt Hinge — Fixed Pin, 85 mm × 60 mm × 1.6 mm
5908 Fast Fix Hinge — Timber Fix, 100 mm × 70 mm × 2.5 mm
5908.2 Fast Fix Hinge — Aluminium Fix, 100 mm × 70 mm × 2.5 mm
5909 Wide Throw Butt Hinge, 100 mm × 125 mm × 3.2 mm
5910 Butt Hinge — Fixed Pin, 100 mm × 100 mm × 2.5 mm
5911 Wide Throw Butt Hinge, 100 mm × 150 mm × 3.2 mm
5925 Wide Throw Butt Hinge, 100 mm × 175 mm × 3.2 mm
5926 Wide Throw Butt Hinge, 100 mm × 200 mm × 3.2 mm
5927 Bearing Hinge — Fixed Pin, 100 mm × 100 mm × 2.5 mm
5928 Lift-Off Hinge — Fast Fix & Non-Handed, 100 mm × 73 mm × 2.5 mm
5929 Lift-Off Hinge — Left Hand, 100 mm × 75 mm × 2.5 mm
5939 Lift-Off Hinge — Right Hand, 100 mm × 75 mm × 2.5 mm
5970 Concealed Hinge — 25 mm × 152 mm, 150° opening, 60 kg rating (3 hinges)
5972 Concealed Hinge — 29 mm × 177 mm, 150° opening, 120 kg rating (3 hinges)

Download PDF Resources

Zanda 5901 Butt Hinge — Spec Sheet
Zanda Door Furniture Product Brochure
Zanda Architectural Catalogue
Zanda Commercial Hardware Catalogue
Zanda Warranty

!
